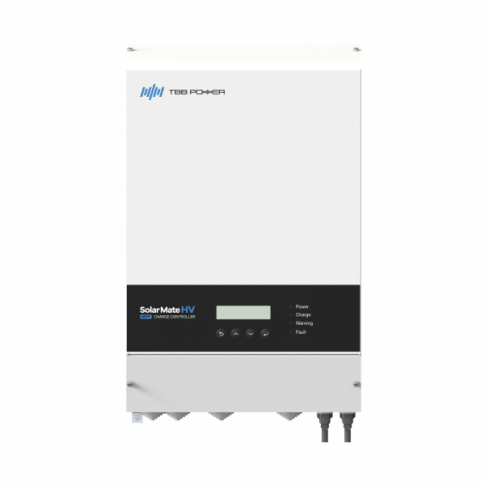

TBB Power Solar Mate SP600-120 48V 120A MPPT solar charge controller with 2 x 8kW solar input up to 600V
SKU: SP600-120
The Solar Mate SP600 is a high-voltage, transformer-isolated MPPT charge controller designed to efficiently convert solar energy into electricity for 48V lithium or lead-acid batteries . With a 600V open-circuit PV input and dual independent MPPT trackers , it maximises solar energy harvest while reducing system costs. Its high conversion efficiency (>97%) , intelligent control features, and robust safety mechanisms make it an excellent choice for off-grid, hybrid, and energy storage applications . The SP600 is perfectly suited for integration with the TBB Rio and Tyrann inverters , enabling a unified energy management system. Users can monitor and control their setup through the TBB E4 display or the NOVA web app , where the entire TBB ecosystem communicates seamlessly for optimised performance, ease of use, and intelligent diagnostics. Key functions: 1. High voltage & wide MPPT tracking: The 80-525V MPPT range minimises the need for a combiner box, reducing installation complexity and costs. With a 600V open-circuit PV input , it enables greater system flexibility and scalability. 2. Dual independent MPPT trackers: Designed for optimal solar energy utilisation , the SP600 supports two separate PV arrays , allowing installation on different roof orientations to maximise solar harvest. 3. High electrical safety & isolation: Featuring high-voltage reinforced insulation between the PV and battery, the SP600 ensures enhanced electrical safety and system reliability. Additionally, it includes built-in PV insulation resistance detection (earth fault detection) for improved protection. 4. Superior efficiency & compact design: With a maximum efficiency of over 97% , the SP600 minimises energy losses while maintaining high power density in a compact form , saving valuable installation space. Additional intelligent features: Smart cooling system: Intelligent fan control minimises noise while optimising thermal management. User-friendly interface: LCD display + LED indicators provide real-time system insights. Advanced monitoring & communication: Equipped with RS485, CAN bus, and Bluetooth app support for seamless system monitoring and control. Programmable relay & dry contacts: Includes one programmable relay (dry output contact) and one dry input contact for customisable system integration. Parallel capability: Supports parallel connection of up to 15 units , enabling higher power capacity for large-scale installations. Battery compatibility & grounding: Works seamlessly with lead-acid and lithium batteries , with a CAN bus interface for lithium battery communication . The positive battery pole grounding feature meets telecommunication industry standards. Versatile applications: This high-performance charge controller is ideal for: Residential & commercial solar energy storage Off-grid and hybrid solar systems Telecommunication backup power Remote energy solutions The SP600-120 is an ideal solution for off-grid solar systems and backup power setups, delivering superior energy efficiency, intelligent monitoring, and robust protection for long-term performance and reliability. Click on the Details and Specifications tab for more information about this product. Controller specifications: Nominal battery voltage: 48V Maximum charge current: 120A Maximum charge power: 7000W @57.6V total (5000W @57.6V per tracker) Maximum PV open circuit voltage: 600V PV operating voltage range: 120 – 525V MPPT voltage range: 80 – 525V Number of MPPT trackers: 2 Maximum PV input current per tracker: 18A Maximum PV power per tracker: 8000W MPPT efficiency: >99.9% Operating temperature: from -20 o C to +65 o C Dimensions: 484 x 280 x 108 mm Weight: 7.8 kg The product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions . The product comes with a detailed user manual which explains wiring and operations (see Documents tab). Advanced users will benefit from a section in the manual explaining MPPT technology. If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information). The following documents are available to download: User Manual for TBB Power Solar Mate SP600 48V 120A MPPT solar charge controller (SP600-120) Datasheet for TBB Power Solar Mate SP600 48V 120A MPPT solar charge controller (SP600-120)
£1,039.18Includes VAT
TBB Power Solar Mate SP600-120 48V 120A MPPT solar charge controller with 2 x 8kW solar input up to 600V—£1,039.18inc. VAT
Standard delivery3-5 days, £8
Free UK shippingOrders over £100
