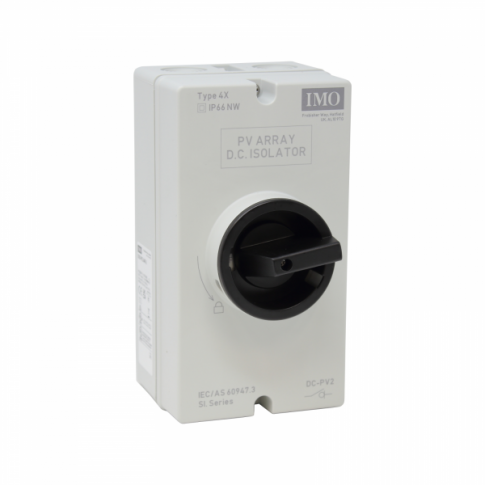

This high-quality IMO manual 4 pole solar DC isolator switch enables quick and reliable isolation of the solar DC input from the rest of the system. Designed and manufactured to the highest European quality standards. This is a quad pole, two phase disconnector switch which is lockable in the off position (with an optional padlock), if required. This is an ideal solution for easy-to-reach disconnection of your solar power supply from the inverter/regulator. The switch is highly durable and totally insulated with an IP66 protection rating, making it ideal for harsh environment applications. The unit features four mounting holes for ease of installation. Click on the Details and Specifications tab for more information Specifications: MPN: SI25-PEL64R-4 Rated current: 25A Dimensions: 180 x 98 x 107mm Weight: 0.5 kg 4 Pole (2 strings) Grey Body with Black switch Switching times of less than 5ms Rated operating current & voltage (4 poles): 25A @ 300V 25A @ 600V 25A @ 800V 25A @ 1000V 14A @ 1500V This product is covered by a 1-year manufacturer warranty . For more information please refer to our Terms and Conditions . If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information). The following documents are available to download: IMO brochure and datasheet for DC isolator switch (IMO25A-4P) IMO DC isolator declaration of conformity (IMO25A-4P)
