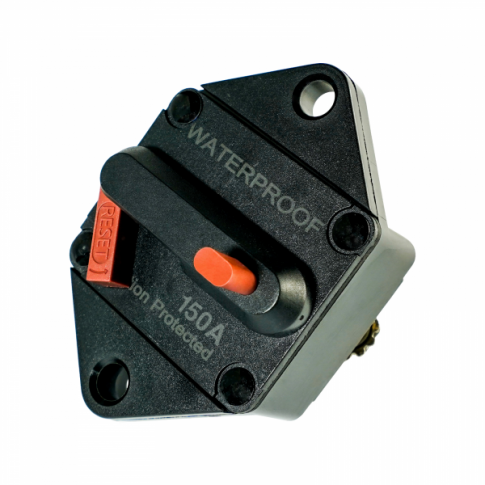

This 150A circuit breaker combines functions of a resettable 150A fuse and on/off switch in one unit. It is ideal for any DC system that requires both overcurrent protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V. Like any fuse, this circuit breaker is designed to protect the system from overcurrent as a result of high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event. The circuit breaker is resettable which makes it a superior alternative to fuses which require replacement when blown. Additionally, the breaker has a manual-break option which allows it to be used as an isolator on/off switch for simple disconnection and reconnection of the system. The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). The breaker is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500). This product is suitable for a wide range of DC applications including: Connecting solar or wind charge controllers to batteries; Sitting between off-grid inverter DC input and batteries; DC power distribution or charging circuits; Other DC automotive and marine applications. Please note this product is suitable for panel or recess mount. Click on the Details and Specifications tab for more information. Circuit breaker specifications: Rating: 150A Type: Thermal overcurrent protection device Material: Thermal plastic ( UL rated 94V-0) Operating temperature: -32C to 82C Storage temperature: -34C to 149C Terminals size: M6 Enclosure: IP67 Size: 74 x 48 x 37 mm Weight: 110g Waterproof rating: IP67 International standard ratings (S.A.E. J1625, J1171, UL1500) Please note that this circuit breaker is intended for panel or recess mounting. The following documents are available to download: Time vs Rated Current graph for Photonic Universe 150A Circuit breaker (CBR150) Temperature derating graph for Photonic Universe 150A Circuit breaker (CBR150)
